DT Swiss RR440 Wheel Set

$649.99

The DT Swiss RR440 is a premium welded tubeless ready + clincher road rim that is light weight and strong for their respective weight, and out perform just about any other road classic clincher out there.

Description

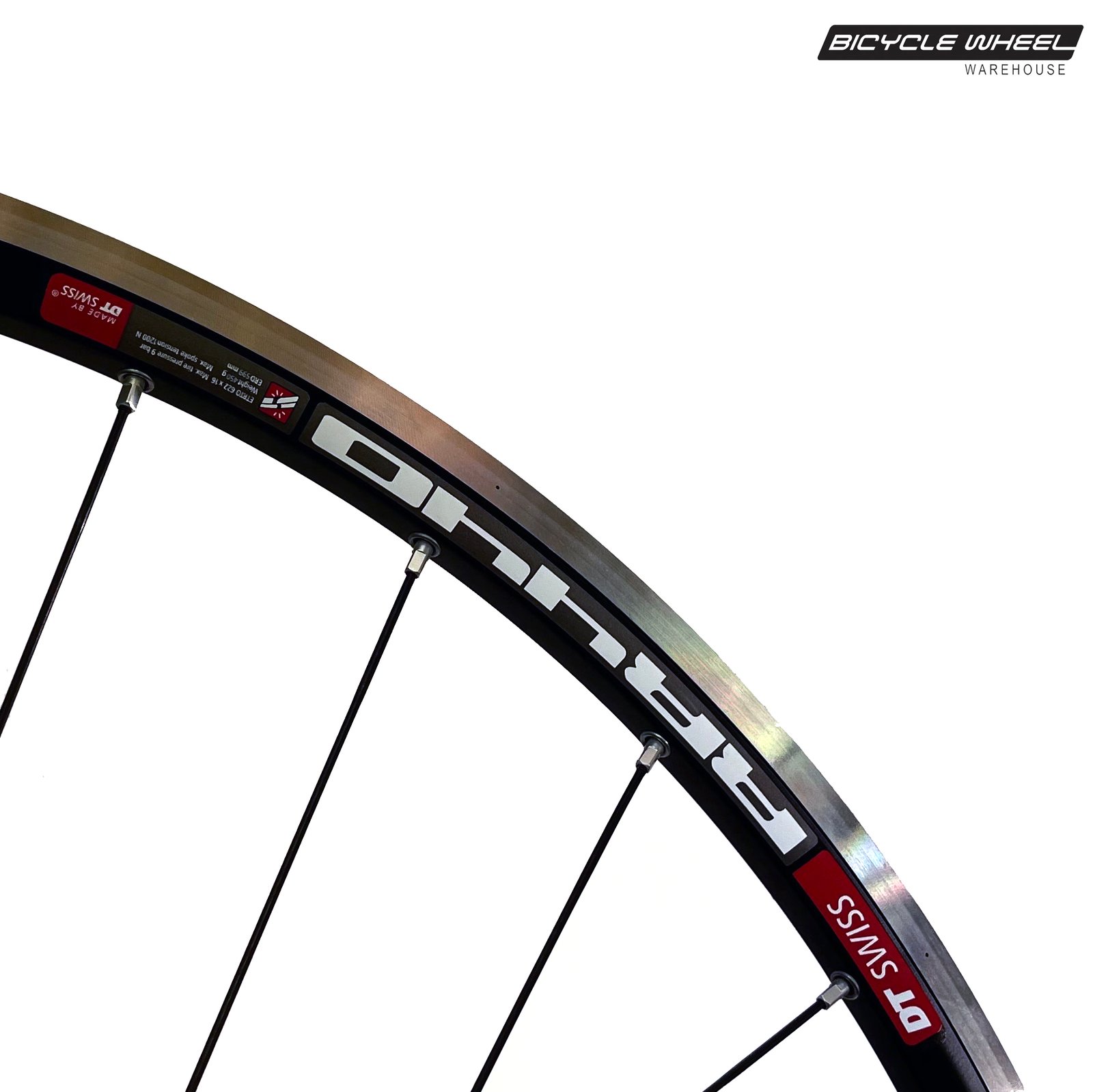

DT Swiss RR440 wheels are the logical successor to their RR415 rims, which in turn were designed to go head to head with the then unseated #1 road race rim, the Mavic Open Pro.  That’s a long way of saying that the RR440 is one of the best welded road rims available, period.  This rim has a welded seam, precision machined sidewalls, and has a 16mm tubeless ready inner profile.  These are light weight and very versatile.  We stock these rims in a variety of hole counts, and Asym and Non-asym.

This particular option is a 24 hole front / 28 hole rear wheel set build, geared towards Go Fast weekends or those that prefer hills and mountains.

These wheels are built with your choice of top quality Sapim black stainless spokes, and polyax nipples, laced to one of the best sealed bearing road hub sets that we have.  Available with a Shimano 8/9/10 spd, Shimano Road 11/12 freehub, or a Campagnolo 9/10/11 speed freehub.



More Wheel Facts:

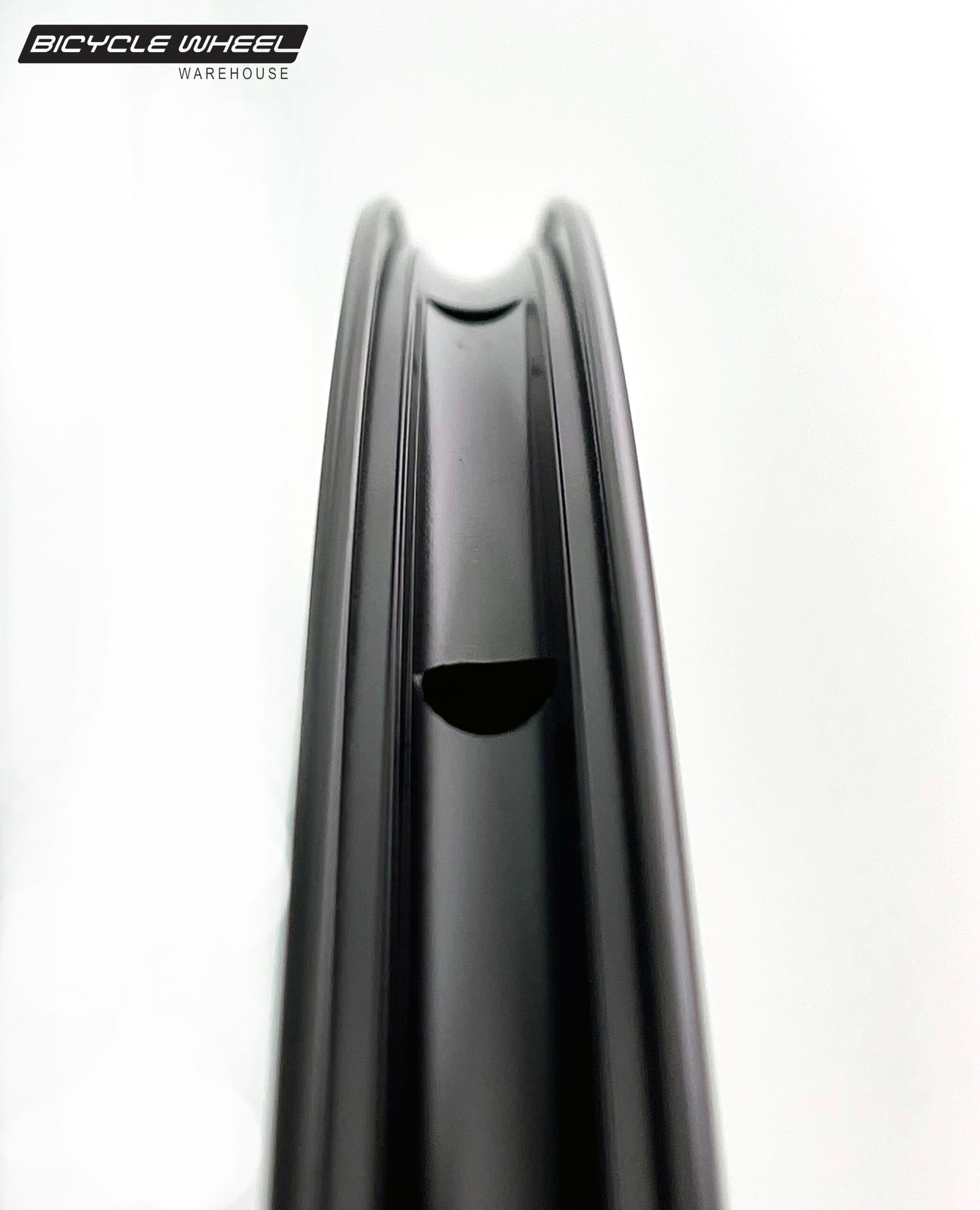

-DT Swiss RR440 tubeless clincher rims are 19mm tall, with a 21mm outer and 16mm inner width.  Rim weight is approx. 450g/ea.  These rims will work with inner tubes and clincher tires OR tubeless ready tires with valves.

-Compatible with a wide range of tires, 700 x 20c – 32c will all work.

-Wheel set weights will vary based on spoke and nipple selection, but for reference in 24/28H:

With Race double butted and alloy – Front (665g)  / Rear (865g)  = 1530g



*Wheels will ship with QR levers and tubeless 19mm tape installed.

DT Swiss RR440 Tubeless Ready / Clincher Specs

700c Front Wheel Rear Wheel Wheel Weights (approx)
Rim Info Aluminum Alloy Tubeless Ready Clincher, double wall, welded
ETRTO 622 x 16
Weight ≈450g average ≈450g average
Sidewall CNC machined, rim brake compatible
Inner Width 16mm
Outer Width 21mm
Rim Depth 19mm
Rim ETRTO 622 x 16mm
Rim ERD 600 (without washers)
Rim Tape 19mm Tubeless Ready Rim Tape ≈ 18 – 35g/wheel (varies based on overlap)
Washers Single stainless eyelets
Valve Type Presta
Tire Type Standard Clincher with inner tube OR Tubeless Ready Tires + Valves and Sealant
Tire Volumes 700 x 20mm – 700 x 32mm (sweet spot is 700×25 and 700×28)
Nipple Info Option Alloy Sapim Alloy Double Square Silver Alloy @ ≈ .34g ea 24H = 8.16, 28H = 9.52
Spoke Info Race Sapim Race 2.0/1.8/2.0 Butted Stainless Spokes Black ≈ 5.65g ea 24H = 135g, 28H = 157.5g
Spoke Info Dlight Sapim D-Light TCS 2.0/1.65/2.0 Butted Stainless Spokes Black ≈ 5.16g ea 24H = 124g, 28H = 144g
Spoke Count Front: 24H Rear: 28H
Spoke Pattern Front: Radial Rear: 3 Cross (28H)
Lengths 284mm 296/298 (3x)

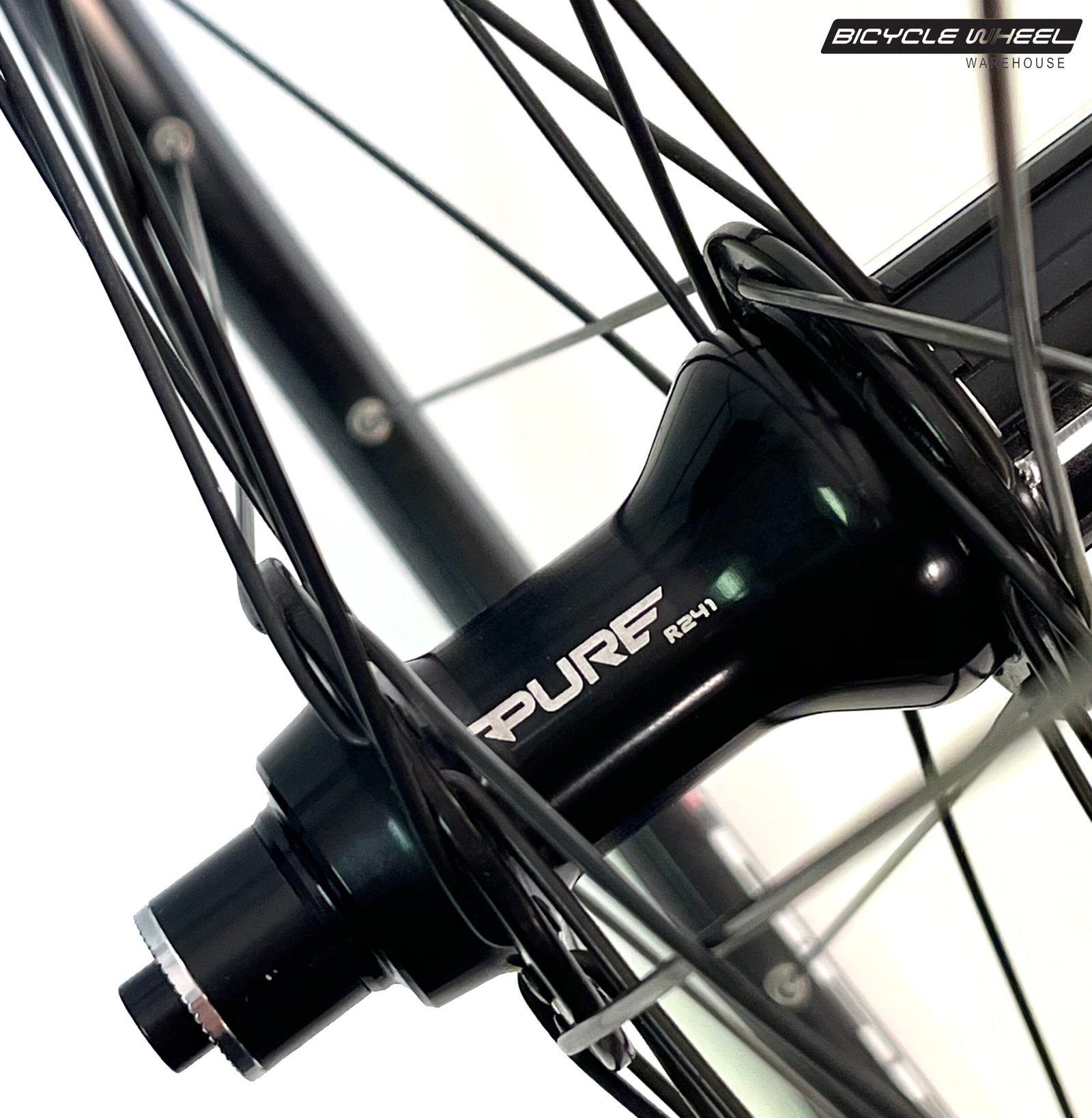

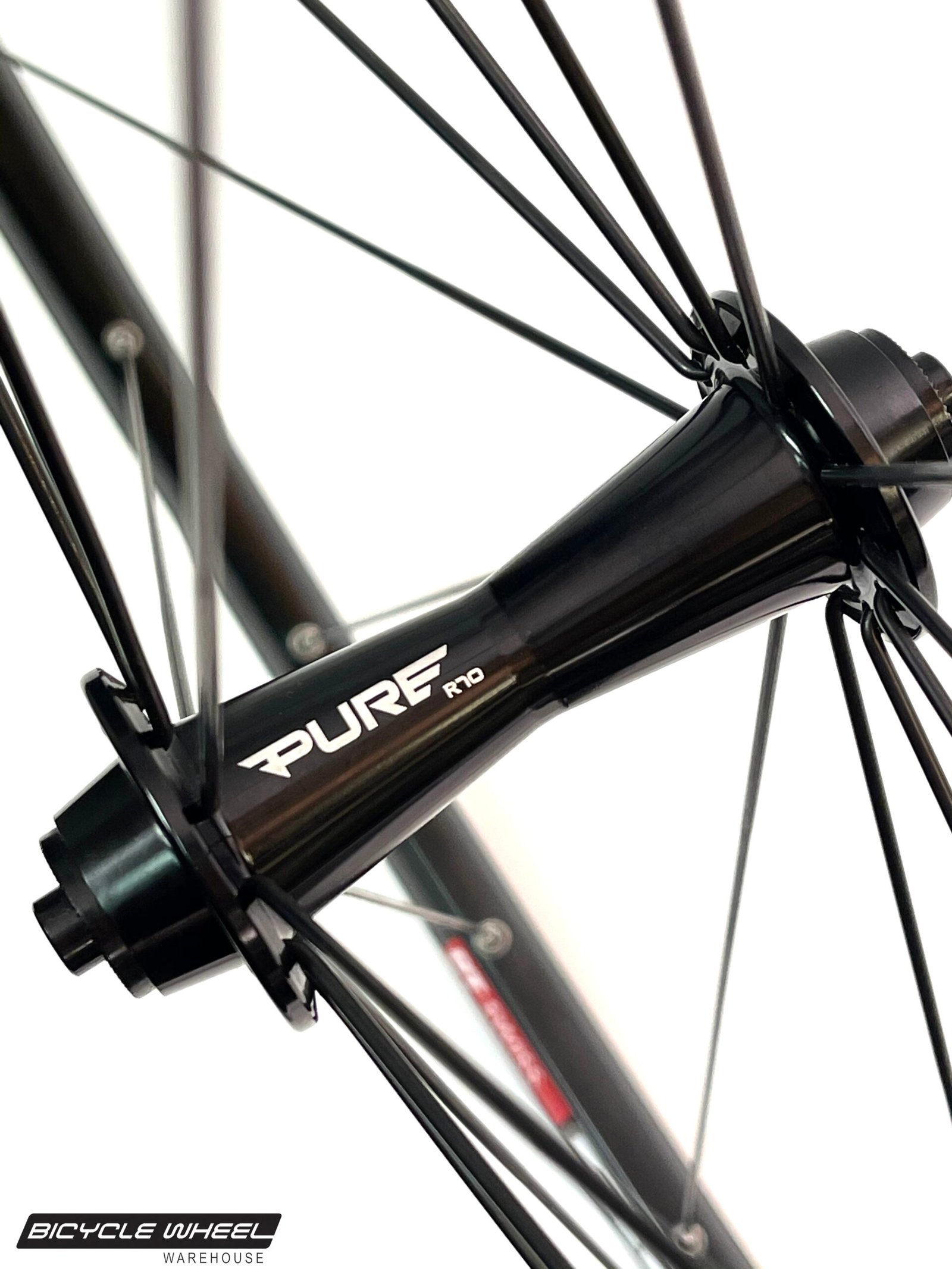

Hub Info BWW R70 BWW R241
Hub Weight 70g 241g 70g F, 241g R
Hub Shell Aluminum Alloy
Axle Info QR 9mm x 100mm OLD QR 10mm x 130mm OLD
Hole Ct 20H or 24H 28H
DriveS PCD
32 47
DS Ctr to Flange 38 17
Non-DriveS PCD 32 47
NDS Ctr to Flange 38 37
Axle Material Aluminum Alloy
Bearings Sealed Cartridge Japan EZO Bearings
Bearing Size Japan EZO 699RU Japan EZO 6803RU
Freehub Shimano/SRAM Road 8/9/10 speed
FH Option 1 Shimano/SRAM Road 11 speed – Out of Stock
FH Option  Campagnolo 8/9/10/11 speed
FH Material Aluminum Alloy
  • All options include tubeless rim tape and QR levers.

Where is Your Wheel Set Weight?

Not all wheel weight is equal. An 1800g wheel set with a 20 / 24 spoke count may be using heavier rims, spokes, and hubs, compared to the same wheel set with a higher spoke count. When you lower a wheel set’s spoke count, you run the risk of decreasing durability, as well as lateral stiffness, (the wheels could flex and rub with the brakes). All that, and they tend to feel a bit dull.  These wheels start with the use of a superior rim profile with purposeful wall thickness.  So the rim is light weight, but not flimsy.  The utilization of 3D shaped internal stainless steel nipple washers that match Sapim’s Polyax nipples mean that where the rim is doing the most work, at each spoke hole, we’re increasing the surface area in which the work is conducted.  This reduces rim stress, reduces the likelihood of rim cracking, while promoting rim life.  Expect these wheels to feel better, and last longer than your current mid 1400g wheel set now.

Additional information

Weight 7 lbs
Dimensions 30 × 7 × 26 in
